In this piece, we’ll make an app that lets users enter their document in a rich text editor and generate a PDF from it. We will use Express for back-end and React for front-end.
PDF stands for Portable Document Format. It’s a popular format for exchanging documents. Therefore, a lot of apps feature the ability to create PDFs from other kinds of documents. Creating PDFs is easy in Node.js apps with third party libraries. We can easily make an app from it ourselves.
Back-End
We will start with the back-end. To start, we create a project folder with the backend folder inside. Then in the backend folder run npx express-generator to create the Express app. Then run npm i to install the packages listed in package.json .
Next, we install our own packages. We need Babel to run the app with the latest version of JavaScript, CORS for cross domain requests with front end, HTML-PDF for converting HTML strings to PDF, Multer for file upload, Sequelize for ORM, and SQLite3 for our database.
We install all of these by running npm i @babel/cli @babel/core @babel/node @babel/preset-env cors html-pdf sequelize sqlite3 multer .
After that we change the scripts section of package.json to have:
"start": "nodemon --exec npm run babel-node -- ./bin/www",
"babel-node": "babel-node"
This is so that we run our app with Babel instead of the regular Node runtime.
Then we create a .babelrc file in the backend folder and add this:
{
"presets": [
"@babel/preset-env"
]
}
This specifies that we run our app with the latest version of JavaScript.
Next we add our database code. Run npx sequelize-cli init in the backend folder to create the Sequelize code.
We should have a config.js in the project now. In there, add this:
{
"development": {
"dialect": "sqlite",
"storage": "development.db"
},
"test": {
"dialect": "sqlite",
"storage": "test.db"
},
"production": {
"dialect": "sqlite",
"storage": "production.db"
}
}
This specifies that we use SQLite for our database.
Next we create our model and migration by running this:
npx sequelize-cli model:create --name Document --attributes name:string,document:text,pdfPath:string
This creates a Document model and Documents table.
We then run this to create the database:
npx sequelize-cli db:migrate
Next we create our routes. Create a pdf.js file in the routes folder and add this:
var express = require("express");
var pdf = require("html-pdf");
const models = require("../models");
var multer = require("multer");
const fs = require("fs");
var router = express.Router();
const storage = multer.diskStorage({
destination: (req, file, cb) => {
cb(null, "./files");
},
filename: (req, file, cb) => {
cb(null, `${file.fieldname}_${+new Date()}.jpg`);
}
});
const upload = multer({
storage
});
router.get("/", async (req, res, next) => {
const documents = await models.Document.findAll();
res.json(documents);
});
router.post("/", async (req, res, next) => {
const document = await models.Document.create(req.body);
res.json(document);
});
router.put("/:id", async (req, res, next) => {
const id = req.params.id;
const { name, document } = req.body;
const doc = await models.Document.update(
{ name, document },
{ where: { id } }
);
res.json(doc);
});
router.delete("/:id", async (req, res, next) => {
const id = req.params.id;
await models.Document.destroy({ where: { id } });
res.json({});
});
router.get("/generatePdf/:id", async (req, res, next) => {
const id = req.params.id;
const documents = await models.Document.findAll({ where: { id } });
const document = documents[0];
const stream = await new Promise((resolve, reject) => {
pdf.create(document.document).toStream((err, stream) => {
if (err) {
reject(reject);
return;
}
resolve(stream);
});
});
const fileName = `${+new Date()}.pdf`;
const pdfPath = `${__dirname}/../files/${fileName}`;
stream.pipe(fs.createWriteStream(pdfPath));
const doc = await models.Document.update(
{ pdfPath: fileName },
{ where: { id } }
);
res.json(doc);
});
router.post("/uploadImage", upload.single('upload'), async (req, res, next) => {
res.json({
uploaded: true,
url: `${process.env.BASE_URL}/${req.file.filename}`
});
});
module.exports = router;
We do the standard CRUD operations to the Documents table in the first four routes. We have GET for getting all the Documents , POST for create a Document from post parameters, PUT for updating Document by ID, DELETE for deleting a Document by looking it up by ID. We have the HTML in the document field for generating the PDF later.
The generatePdf is for generating the PDF. We get the ID from the URL and then use the HTML-PDF package to generate the PDF. We generate the PDF by converting the HTML document to a file stream object with the HTML-PDF package and then writing the stream to a file and, finally, saving the path to the file in the Document entry in with the ID in the URL parameter.
We also have an uploadImage route to let user upload images with CKEditor with the CKFinder plugin. The plugin expects uploaded and url in the response, so we return those.
Then we need to add a files folder to the backend folder.
Next in app.js , we replace the existing code with this:
var createError = require("http-errors");
var express = require("express");
var path = require("path");
var cookieParser = require("cookie-parser");
var logger = require("morgan");
var cors = require("cors");
var indexRouter = require("./routes/index");
var pdfRouter = require("./routes/pdf");
var app = express();
// view engine setup
app.set("views", path.join(__dirname, "views"));
app.set("view engine", "jade");
app.use(logger("dev"));
app.use(express.json());
app.use(express.urlencoded({ extended: false }));
app.use(cookieParser());
app.use(express.static(path.join(__dirname, "public")));
app.use(express.static(path.join(__dirname, "files")));
app.use(cors());
app.use("/", indexRouter);
app.use("/pdf", pdfRouter);
// catch 404 and forward to error handler
app.use(function(req, res, next) {
next(createError(404));
});
// error handler
app.use(function(err, req, res, next) {
// set locals, only providing error in development
res.locals.message = err.message;
res.locals.error = req.app.get("env") === "development" ? err : {};
// render the error page
res.status(err.status || 500);
res.render("error");
});
module.exports = app;
We expose the file folder with this:
app.use(express.static(path.join(__dirname, "files")));
We expose the pdf route with this:
var pdfRouter = require("./routes/pdf");
app.use("/pdf", pdfRouter);
Front-End
Now the back-end is done, we can move onto the front-end. Create the React app by running Create React App. We run npx create-react-app frontend in the root folder of the project.
We then install our packages. We will use CKEditor for our rich text editor, Axios for making HTTP requests, Bootstrap for styling, MobX for simple state management, React Router for routing URLs to components, and Formik and Yup for form value handling and form validation respectively.
Install all the packages by running npm i @ckeditor/ckeditor5-build-classic @ckeditor/ckeditor5-react axios bootstrap formik mobx mobx-react react-bootstrap react-router-dom yup .
With the packages installed, we can get started. In App.js , we replace the existing code with this:
import React from "react";
import HomePage from "./HomePage";
import { Router, Route } from "react-router-dom";
import { createBrowserHistory as createHistory } from "history";
import TopBar from "./TopBar";
import { DocumentStore } from "./store";
import "./App.css";
const history = createHistory();
const documentStore = new DocumentStore();
function App() {
return (
<div className="App">
<Router history={history}>
<TopBar />
<Route
path="/"
exact
component={props => (
<HomePage {...props} documentStore={documentStore} />
)}
/>
</Router>
</div>
);
}
export default App;
This adds our top bar and route to the home page.
In App.css, we replace the existing code with this:
.page {
padding: 20px;
}
.content-invalid-feedback {
width: 100%;
margin-top: 0.25rem;
font-size: 80%;
color: #dc3545;
}
nav.navbar {
background-color: green !important;
}
This adds some padding to our page. It also styles the validation message for the Rich text editor and changes the color of the navbar.

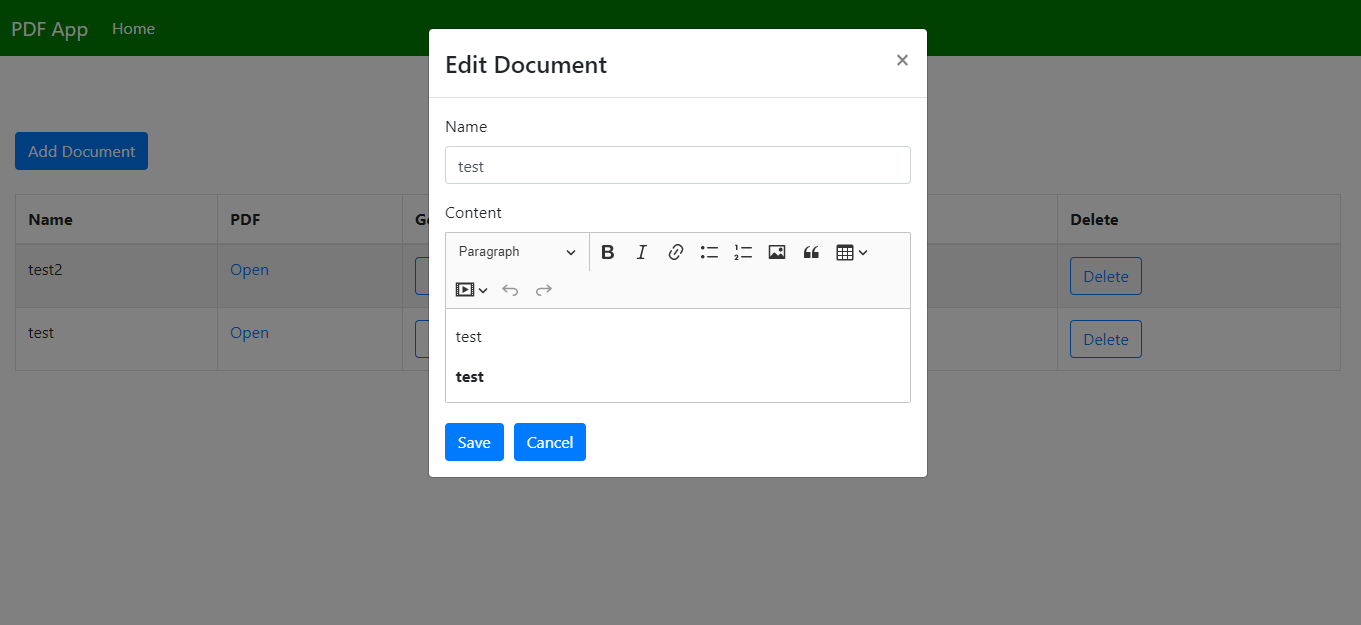

Next we create the form for adding and editing documents. Create a DocumentForm.js in the src file and add this:
import React from "react";
import * as yup from "yup";
import Form from "react-bootstrap/Form";
import Col from "react-bootstrap/Col";
import Button from "react-bootstrap/Button";
import { observer } from "mobx-react";
import { Formik, Field } from "formik";
import { addDocument, editDocument, getDocuments, APIURL } from "./request";
import CKEditor from "@ckeditor/ckeditor5-react";
import ClassicEditor from "@ckeditor/ckeditor5-build-classic";
const schema = yup.object({
name: yup.string().required("Name is required")
});
function DocumentForm({ documentStore, edit, onSave, doc }) {
const [content, setContent] = React.useState("");
const [dirty, setDirty] = React.useState(false);
const handleSubmit = async evt => {
const isValid = await schema.validate(evt);
if (!isValid || !content) {
return;
}
const data = { ...evt, document: content };
if (!edit) {
await addDocument(data);
} else {
await editDocument(data);
}
getAllDocuments();
};
const getAllDocuments = async () => {
const response = await getDocuments();
documentStore.setDocuments(response.data);
onSave();
};
return (
<>
<Formik
validationSchema={schema}
onSubmit={handleSubmit}
initialValues={edit ? doc : {}}
>
{({
handleSubmit,
handleChange,
handleBlur,
values,
touched,
isInvalid,
errors
}) => (
<Form noValidate onSubmit={handleSubmit}>
<Form.Row>
<Form.Group as={Col} md="12" controlId="name">
<Form.Label>Name</Form.Label>
<Form.Control
type="text"
name="name"
placeholder="Name"
value={values.name || ""}
onChange={handleChange}
isInvalid={touched.name && errors.name}
/>
<Form.Control.Feedback type="invalid">
{errors.name}
</Form.Control.Feedback>
</Form.Group>
</Form.Row>
<Form.Row>
<Form.Group as={Col} md="12" controlId="content">
<Form.Label>Content</Form.Label>
<CKEditor
editor={ClassicEditor}
data={content || ""}
onInit={editor => {
if (edit) {
setContent(doc.document);
}
}}
onChange={(event, editor) => {
const data = editor.getData();
setContent(data);
setDirty(true);
}}
config={{
ckfinder: {
uploadUrl:
`${APIURL}/pdf/uploadImage`
}
}}
/>
<div className="content-invalid-feedback">
{dirty && !content ? "Content is required" : null}
</div>
</Form.Group>
</Form.Row>
<Button type="submit" style={{ marginRight: 10 }}>
Save
</Button>
<Button type="button">Cancel</Button>
</Form>
)}
</Formik>
</>
);
}
export default observer(DocumentForm);
We wrap our React Bootstrap Form inside the Formik component to get the form handling function from Formik, which we use directly in the React Bootstrap form fields. We can’t do the same with CKEditor, so we write our own form handlers for the rich text editor. We set the data prop in the CKEditor to set the value of the input of the rich text editor. The onInit function is used with users try to edit an existing document since we have to set the data prop with the editor initialized by running setContent(doc.document); . The onChange prop is the handler function for setting content whenever it is updated — so the data prop will have the latest value, which we will submit when the user clicks Save.
We use the CKFinder plugin to upload images. To make it work, we set the image upload URL to the URL of the upload route in our back-end.
By default, we have simple text styling buttons like bold and italics, we can also add pictures and videos into our document. Also we can add tables and lists without making any changes to our editor.
The form validation schema is provided by the Yup schema object which we create at the top of the code. We need to check if the name field is filled in.
The handleSubmit function is for handling submitting the data to back end. We check both the content and the evt object to check both fields since we cannot incorporate the Formik form handlers directly into the CKEditor component.
If everything is valid, then we add a new document or update it depending on whether the edit prop is true or not.
Then, when saving is successful, we call getAllDocuments to populate the latest documents into our MobX store by running documentStore.setDocuments(response.data);.

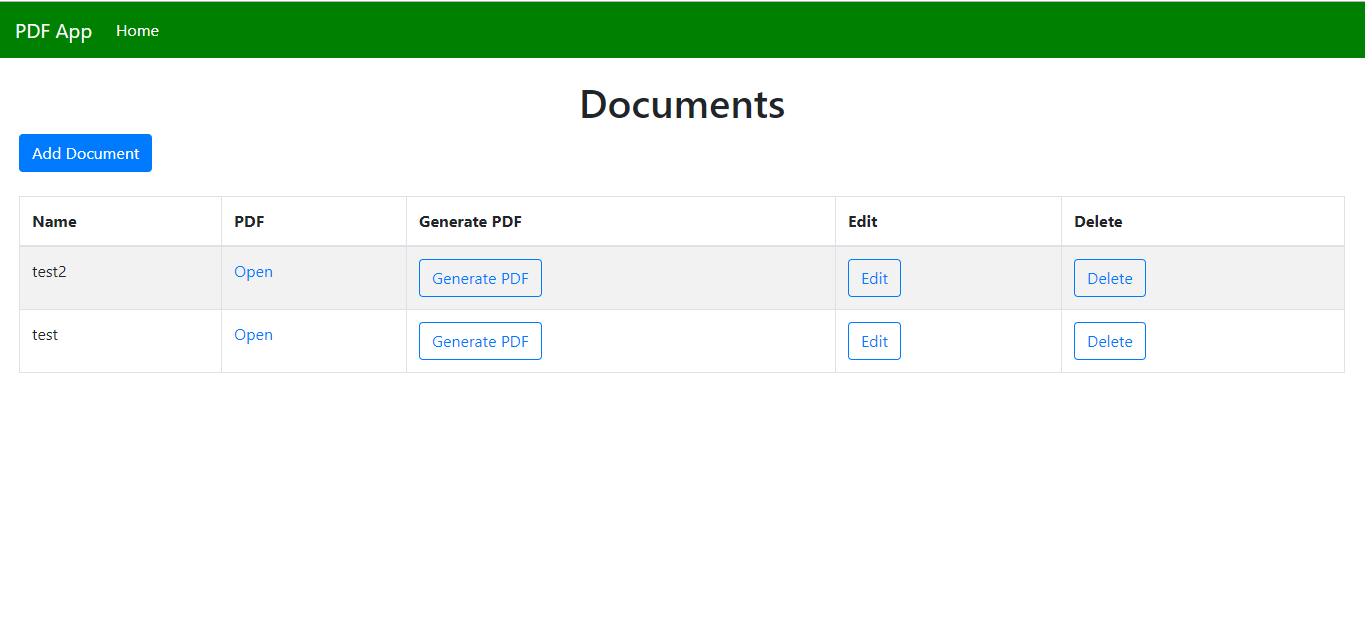

Next, we make our home-page by creating HomePage.js in the src folder and add this:
import React, { useState, useEffect } from "react";
import { withRouter } from "react-router-dom";
import DocumentForm from "./DocumentForm";
import Modal from "react-bootstrap/Modal";
import ButtonToolbar from "react-bootstrap/ButtonToolbar";
import Button from "react-bootstrap/Button";
import Table from "react-bootstrap/Table";
import { observer } from "mobx-react";
import { getDocuments, deleteDocument, generatePDF, APIURL } from "./request";
function HomePage({ documentStore, history }) {
const [openAddModal, setOpenAddModal] = useState(false);
const [openEditModal, setOpenEditModal] = useState(false);
const [initialized, setInitialized] = useState(false);
const [doc, setDoc] = useState([]);
const openAddTemplateModal = () => {
setOpenAddModal(true);
};
const closeAddModal = () => {
setOpenAddModal(false);
setOpenEditModal(false);
};
const cancelAddModal = () => {
setOpenAddModal(false);
};
const cancelEditModal = () => {
setOpenEditModal(false);
};
const getAllDocuments = async () => {
const response = await getDocuments();
documentStore.setDocuments(response.data);
setInitialized(true);
};
const editTemplate = d => {
setDoc(d);
setOpenEditModal(true);
};
const onSave = () => {
cancelAddModal();
cancelEditModal();
};
const deleteSingleDocument = async id => {
await deleteDocument(id);
getAllDocuments();
};
const generateSinglePdf = async id => {
await generatePDF(id);
alert("PDF Generated");
getAllDocuments();
};
useEffect(() => {
if (!initialized) {
getAllDocuments();
}
});
return (
<div className="page">
<h1 className="text-center">Documents</h1>
<ButtonToolbar onClick={openAddTemplateModal}>
<Button variant="primary">Add Document</Button>
</ButtonToolbar>
<Modal show={openAddModal} onHide={closeAddModal}>
<Modal.Header closeButton>
<Modal.Title>Add Document</Modal.Title>
</Modal.Header>
<Modal.Body>
<DocumentForm
onSave={onSave.bind(this)}
cancelModal={cancelAddModal.bind(this)}
documentStore={documentStore}
/>
</Modal.Body>
</Modal>
<Modal show={openEditModal} onHide={cancelEditModal}>
<Modal.Header closeButton>
<Modal.Title>Edit Document</Modal.Title>
</Modal.Header>
<Modal.Body>
<DocumentForm
edit={true}
doc={doc}
onSave={onSave.bind(this)}
cancelModal={cancelEditModal.bind(this)}
documentStore={documentStore}
/>
</Modal.Body>
</Modal>
<br />
<Table striped bordered hover>
<thead>
<tr>
<th>Name</th>
<th>PDF</th>
<th>Generate PDF</th>
<th>Edit</th>
<th>Delete</th>
</tr>
</thead>
<tbody>
{documentStore.documents.map(d => {
return (
<tr key={d.id}>
<td>{d.name}</td>
<td>
<a href={`${APIURL}/${d.pdfPath}`} target="_blank">
Open
</a>
</td>
<td>
<Button
variant="outline-primary"
onClick={generateSinglePdf.bind(this, d.id)}
>
Generate PDF
</Button>
</td>
<td>
<Button
variant="outline-primary"
onClick={editTemplate.bind(this, d)}
>
Edit
</Button>
</td>
<td>
<Button
variant="outline-primary"
onClick={deleteSingleDocument.bind(this, d.id)}
>
Delete
</Button>
</td>
</tr>
);
})}
</tbody>
</Table>
</div>
);
}
export default withRouter(observer(HomePage));
We have a React Bootstrap table for listing the documents with buttons to edit, deleting documents, and generating PDFs. Also, there’s an “open” link for opening the PDF in each row. We have a “create” button on top of the table.
When the page loads, we call getAllDocuments and populate them in the MobX store. We open and close the add and edit modals with the openAddTemplateModal, closeAddModal, cancelAddModal, cancelEditModal functions.
Next, create request.js in the src folder and add this:
export const APIURL = "http://localhost:3000";
const axios = require("axios");
export const getDocuments = () => axios.get(`${APIURL}/pdf`);
export const addDocument = data => axios.post(`${APIURL}/pdf`, data);
export const editDocument = data => axios.put(`${APIURL}/pdf/${data.id}`, data);
export const deleteDocument = id => axios.delete(`${APIURL}/pdf/${id}`);
export const generatePDF = id => axios.get(`${APIURL}/pdf/generatePdf/${id}`);
This adds the functions to make requests to our routes in the back end.
Then we create our MobX store. Create store.js in the src folder and put this in it:
import { observable, action, decorate } from "mobx";
class DocumentStore {
documents = [];
setDocuments(documents) {
this.documents = documents;
}
}
DocumentStore = decorate(DocumentStore, {
documents: observable,
setDocuments: action
});
export { DocumentStore };
We have the function setDocuments to put the photo data in the store. We used it in HomePage and DocumentForm and we instantiated it before exporting so that we only have to do it in one place.
This block:
DocumentStore = decorate(DocumentStore, {
documents: observable,
setDocuments: action
});
designates the documents array in DocumentStore as the entity that can be watched by components for changes. The setDocuments function is designated as the function that can be used to set the documents array in the store.
Next, we create the top bar by creating a TopBar.js file in the src folder and add:
import React from "react";
import Navbar from "react-bootstrap/Navbar";
import Nav from "react-bootstrap/Nav";
import { withRouter } from "react-router-dom";
function TopBar({ location }) {
return (
<Navbar bg="primary" expand="lg" variant="dark">
<Navbar.Brand href="#home">PDF App</Navbar.Brand>
<Navbar.Toggle aria-controls="basic-navbar-nav" />
<Navbar.Collapse id="basic-navbar-nav">
<Nav className="mr-auto">
<Nav.Link href="/" active={location.pathname == "/"}>
Home
</Nav.Link>
</Nav>
</Navbar.Collapse>
</Navbar>
);
}
export default withRouter(TopBar);
This contains the React Bootstrap Navbar to show a top bar with a link to the home page and the name of the app. We only display it with the token present in local storage. We check the pathname to highlight the right links by setting the active prop.
Next in index.html , we replace the existing code with this:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8" />
<link rel="shortcut icon" href="%PUBLIC_URL%/favicon.ico" />
<meta name="viewport" content="width=device-width, initial-scale=1" />
<meta name="theme-color" content="#000000" />
<meta
name="description"
content="Web site created using create-react-app"
/>
<link rel="apple-touch-icon" href="logo192.png" />
<!--
manifest.json provides metadata used when your web app is installed on a
user's mobile device or desktop. See https://developers.google.com/web/fundamentals/web-app-manifest/
-->
<link rel="manifest" href="%PUBLIC_URL%/manifest.json" />
<!--
Notice the use of %PUBLIC_URL% in the tags above.
It will be replaced with the URL of the `public` folder during the build.
Only files inside the `public` folder can be referenced from the HTML.
Unlike "/favicon.ico" or "favicon.ico", "%PUBLIC_URL%/favicon.ico" will
work correctly both with client-side routing and a non-root public URL.
Learn how to configure a non-root public URL by running `npm run build`.
-->
<title>PDF App</title>
<link
rel="stylesheet"
href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css"
integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T"
crossorigin="anonymous"
/>
</head>
<body>
<noscript>You need to enable JavaScript to run this app.</noscript>
<div id="root"></div>
<!--
This HTML file is a template.
If you open it directly in the browser, you will see an empty page.
You can add webfonts, meta tags, or analytics to this file.
The build step will place the bundled scripts into the <body> tag.
To begin the development, run `npm start` or `yarn start`.
To create a production bundle, use `npm run build` or `yarn build`.
-->
</body>
</html>
This adds the Bootstrap CSS and changes the title.
After writing all that code, we can run our app. First, install nodemon by running npm i -g nodemon so that we don’t have to restart the back-end ourselves when the files change.
Then run the back-end by running npm start in the backend folder and npm start in the frontend folder. Choose ‘yes’ if you’re asked to run it from a different port.

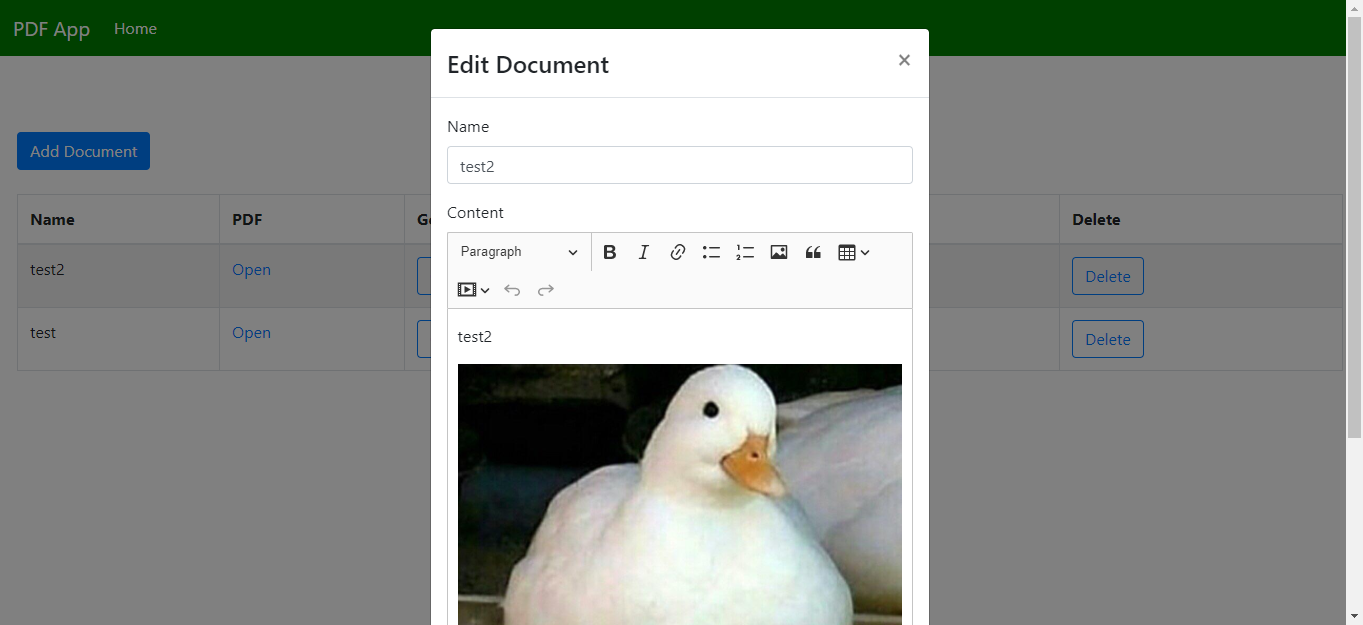

Then you get this:
Suggest:
☞ JavaScript Programming Tutorial Full Course for Beginners
☞ Learn JavaScript - Become a Zero to Hero
☞ E-Commerce JavaScript Tutorial - Shopping Cart from Scratch
